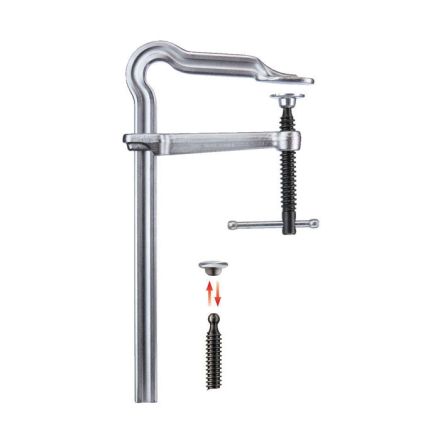

BESSEY RSC-12 SERRE-JOINT, ANTI-VIBRATION, STYLE REPLIE OMEGA, 12 PO X 5.5 PO, 1100 LB
- GLD# BESSEY-00385
- MFG# RSC-12
- UPC 788502007016
Qté min. de commande 1
Spécifications
| UNSPSC | 31162903 |
|---|---|
| Clamping Capacity | 12 in |
| Clamping Pressure | 1100 lb |
| Throat Depth | 5-1/2 in |
| Application | For use on wood and metal |
| Finish | Zinc Plated |
| Handle Material | Steel |
| Nominal Rail Size | 63/64 x 15/32 in |
| Spindle Type | ACME Threaded |
| Screw Size | 45/64 in |
| Series | RSC |
| Handle Type | T-Handle |
| Spindle Diameter | 0.7 in |
| Swivel Type | Replaceable |
| Clamp Face | 1-1/8 x 2 in |
| Swivel Pad | 1-1/2 in |
| Handle Size | 4 in L |
| Bar Material | Steel |
Caractéristiques
- Patented OMEGA-bend™ maintains positive pressure longer under heavy vibration
- High-strength electro-galvanized sliding pin T-handle rounded ends for comfort, size engineered to load capacity
- Forged sliding arm is made from tempered
- Drop forged steel for long service life
- Standard pads are field replaceable
- Heat-treated, high carbon ACME threaded screw - tempered and quenched to give greater load capacity with longer service life
- Spatter resistant
