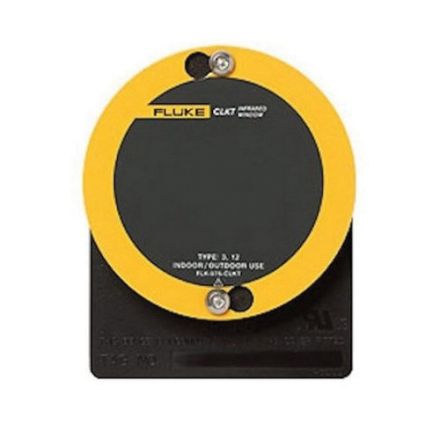

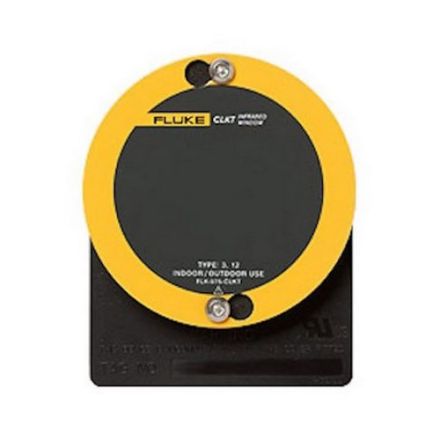

Fenêtre IR Fluke FLK-100-CLKT - Fenêtre C-Range Kwik Twist 1,97". Insert cristal 2mm. Solution économique pour thermographie
- GLD# 4057358071650154000
- MFG# 3460439
- UPC 095969495905
Qté min. de commande 1
Description
Fenêtre infrarouge fluke clirvu, c-portée, gamme : clkt, 1.Insert cristal 97 po, épaisseur de fenêtre de 2 mm, taille douverture de visualisation de 89 mm diam., zone douverture de vision de 6322 mm², revêtue
Spécifications
| Application | Indoor and Outdoor Applications |
|---|---|
| Type | C-Range |
| Crystal Insert Size | 1.97 in |
| Finish | Coated |
| Series | CLKT |
| Viewing Aperture Area | 6322 sq-mm |
| Viewing Aperture Size | 89 mm Dia |
| Window Thickness | 2 mm |
Caractéristiques
- Each CLKT infrared window is engineered and tested to withstand electric arcs up to 50 kA for 30 cycles
- The ClirVu® coating exclusive to Fluke® infrared windows - seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold outdoor environments
- Each Fluke® infrared window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs
- CLKT infrared windows come complete with a security access key, installation instructions and self adhesive drilling template
- Shortwave, midwave, longwave IR, ultraviolet (UV), visual, fusion capable
- Kwik twist aluminum cover
- Up to 11 kV marine switchgear
- Resistance of insulating materials to 100 deg
- Resistance of insulating material to ball pressure (Brinell)
- Glow wire test 650 deg C
