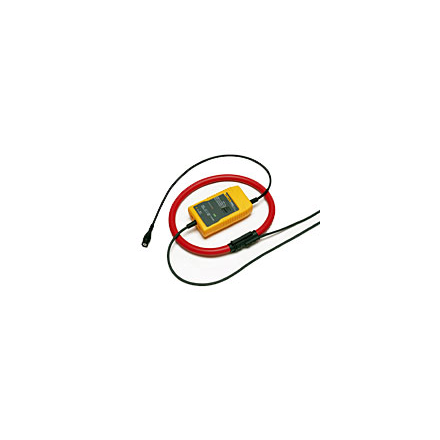

Pince Ampèremétrique Fluke I3000S-FLEX-36 - 600V - 30A - 10Hz - ±1%
- GLD# FLUKE-100522
- MFG# 2584901
- UPC 95969345071
Qté min. de commande 1
Description
Ampèremètre Fluke, pince ampèremétrique ac, 600 v, 30h, 10hz, 30 à 3000 AMP, sortie 1/10/100 milv/AMP, -20 à 85 degrés c en fonctionnement, /- 1 % de précision
Spécifications
| UNSPSC | 41113601 |
|---|---|
| Application | For Use With Multimeters, Recorders Or Data Loggers |
| Accuracy | /- 1 % |
| Frequency Rating | 10 Hz |
| Type | AC Current Clamp |
| Amperage Rating | 30 A |
| Voltage Rating | 600 V |
| Operating Temperature | -20 to 85 Degrees C |
| Measuring Range | 30 to 3000 AMP, 1/10/100 MILV/AMP Output |
Caractéristiques
- Phase error: < /-1 Degrees (45 Hz to 65 Hz)
- Output connection: .5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter
- Cable Length: 6.56 ft
- Head cable diameter: 14.3 mm (0.56 in)
- External field: with cable > 200 mm from the head: /-1% of range
- Output sensitivity (AC-coupled): 100 mV
- EMC standards: EN 61326: 1998 A1, A2, and A3
- Storage Temperature: -20 to 85 Degrees C
- Current ranges: 30 A
- Operating humidity: 15% to 85% (non-condensing)
