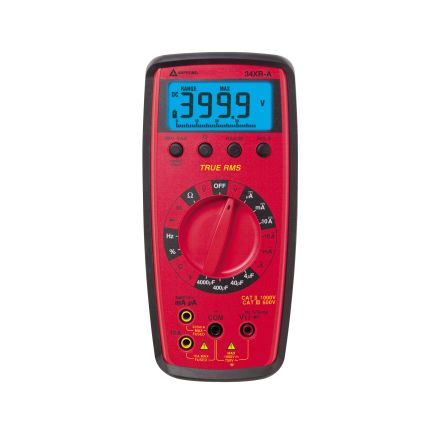

Multimètre Taille Réelle Amprobe 34XR-A - 4-1000V AC/DC - LCD 3999 Points
- GLD# 4078537678640380000
- MFG# 2727795
- UPC 095969365383
Qté min. de commande 1
Description
Amprobe multimètre numérique, taille réelle tours/mn réels, 4 à 1000 vca/v cc, 400 mvac/mvdc, 400 ua, 4 à 300m, 10 une, 4 à 400 khz, 1 mhz, 400 ohms, 4 à 400 kohms, 4 à 40 mohm, cote de sécurité : cat. Iii 300 v, cat. Ii 600 v, cat. Je 1000 v, 4 à 4000 uf, +/-2 % rdg + 8 chiffres pour vca, +/-0.5 % rdg + 1 chiffre pour la précision v cc, 100 uv résolution, 3-3/4 chiffres 3999 comptes lcd, 9 v cc pile alcaline, non, oui, 7.75 po x 3.55 po wx 2.4 po h, 0 à 50 deg c
Spécifications
| Application | For contractors and field service technicians |
|---|---|
| Accuracy | +/-2% RDG + 8 Digits for VAC, +/-0.5% RDG + 1 Digit for VDC |
| Dimensions | 7.75 in L x 3.55 in W x 2.4 in H |
| Display Type | 3-3/4 Digits 3999 Counts LCD |
| Frequency Rating | 4 to 400 kHz, 1 MHz |
| Type | Full Size True RMS |
| Amperage Rating | 400 uA, 4 to 300 mA, 10 A |
| Capacitance | 4 to 4000 uF |
| Diode Test | Yes |
| Resistance | 400 Ohm/4 to 400 kOhm/4 to 40 MOhm |
| Safety Rating | CAT III 300 V, CAT II 600 V, CAT I 1000 V |
| Temperature Rating | 0 to 50 deg C |
| Voltage Rating | 4 to 1000 VAC/VDC, 400 mVAC/mVDC |
| Battery Type | 9 VDC Alkaline |
| Peak Hold | No |
| Resolution | 100 uV |
Caractéristiques
- Amprobe® 34XR-A digital multimeter, a True-RMS digital multimeter with temperature and backlight for contractors and field service technicians
- Auto ranging display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
- 2/s nominal display update rate
- True-RMS digital multimeter with temperature and backlight
- Over range indication
- Auto power off to save battery life
- Maximum/minimum, data hold and range lock
- Separate door for easy battery and fuse access
- Magne-Grip™ holster with magnetic hanging strap
- +/-1.2% RDG + 8 digits at 400 mVAC accuracy
