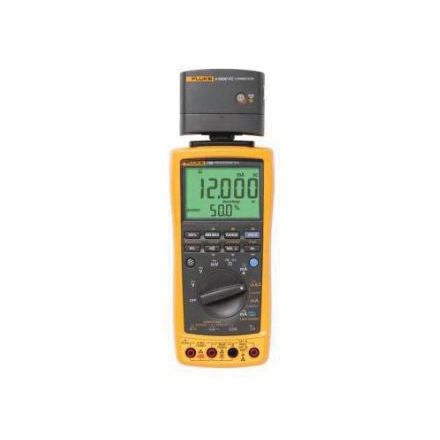

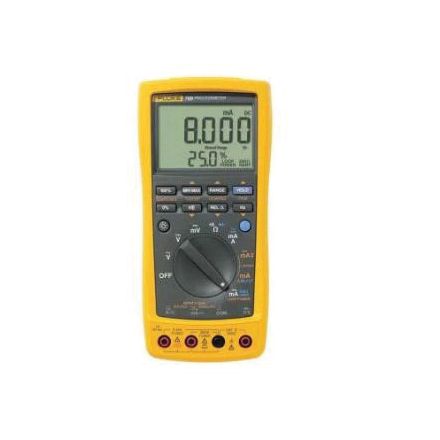

Calibrateur Processus Fluke 789 - Multimètre - 1000V AC/DC - 0-20mA/4-20mA - 40MO
- GLD# 9831356
- MFG# FLUKE-789
- UPC 095969112192
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description
Fluke processmeter multimètre numérique, calibrateur de process, 1000 vca/v cc, 24 millions, 40 mohms, 1000 vca/v cc, 0 à 20 ma, 4 à 20 ma, 19.999 khz, 40 mohm, cote de sécurité : cat. Iii, 0.1 % de précision, 4 piles aa, oui, 7.35 po x 3.41 po wx 1.25 po h, -20 à 55 deg c
Spécifications
| UNSPSC | 41113630 |
|---|---|
| Accuracy | 0.1 % |
| Dimensions | 7.35 in L x 3.41 in W x 1.25 in H |
| Frequency Rating | 19.999 kHz |
| Type | Process Calibrator |
| Amperage Rating | 0 to 20 mA, 4 to 20 mA |
| Diode Test | Yes |
| Resistance | 40 mOhm |
| Safety Rating | CAT III |
| Temperature Rating | -20 to 55 deg C |
| Voltage Rating | 1000 VAC/VDC |
| Battery Type | (4) AA |
| Measuring Range | 1000 VAC/VDC, 24 mA, 40 MOhm |
Caractéristiques
- Ultimate troubleshooting tool for electricians and instrumentation professionals
- Combines the functionality of a loop calibrator with the power of a precision 1000 VAC, 440 mA True-RMS digital multimeter
- Features a very large dual display with enhanced 2-level backlight brightness settings
- Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes and diode test and continuity beeper
- Simultaneous displays mA and % of scale readings
- Provides 20 mA DC current source/loop calibrator/simulator
- Offers manual step (100%, 25%, coarse, fine) plus auto step and auto-ramp
- Delivers 0.1% DC voltage accuracy and 0.05% DC current accuracy
- Provides 1200 ohm drive capability on mA source
- Offers HART mode setting with loop power and a built-in 250 ohm resistor
Guides & Manuels
Fluke_789_Catalog.pdf
TéléchargerFluke_789_Specification_Sheet.pdf
TéléchargerFluke_789_User_Manual.pdf
TéléchargerFluke_789_Manual.pdf
Télécharger
