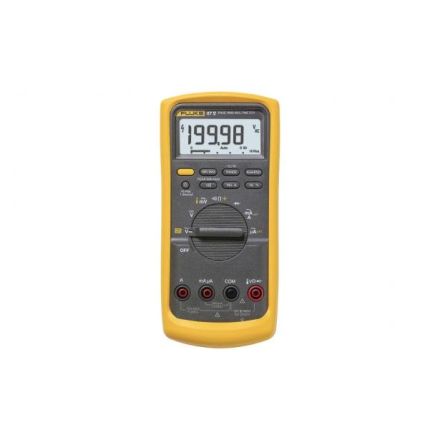

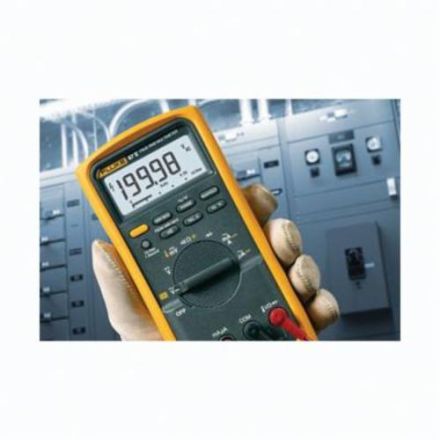

Fluke fluke-87-5 industriel multimètre numérique, 1 000 vca/ v cc, 10 a, 50 mohm, affichage analogique/numérique
- GLD# 9833900
- MFG# 2074974
- UPC 095969245241
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description
Fluke multimètre numérique, industriel, 1 000 vca/ v cc, 10 a, 200 khz, 50 mohm, cote de sécurité : en 61010-1 à cat. Iv 600 vca/ v cc/ cat. Iii 1000 vca/ v cc, 9999 uf, +/- 0.7 % + 2 pour vca tours/mn réels, +/- 0.05 % + 1 pour la précision v cc, bande passante 20 khz, 10 uv/0.Résolution de 1 mv, analogique/numérique, 9 v cc zinc neda 1604/6f22/006p v batterie, oui, oui, 7.35 po hx 3.41 po w x 1.25 po d, -328 à 1994 deg f, plastique dur
Spécifications
UNSPSC | 41113630 |
---|---|
Application | For measuring voltage, current, frequency and capacitance for everyday use |
Accuracy | +/-0.7% + 2 for VAC True RMS, +/-0.05%+1 for VDC |
Dimensions | 3.41 in W x 1.25 in D x 7.35 in H |
Display Type | Analog/Digital |
Frequency Rating | 200 kHz |
Material | Hard Plastic |
Type | Industrial |
Amperage Rating | 10 A |
Capacitance | 9999 uF |
Diode Test | Yes |
Resistance | 50 MOhm |
Safety Rating | EN 61010-1 to CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC |
Temperature Rating | -328 to 1994 deg F |
Voltage Rating | 1000 VAC/VDC |
Battery Type | 9 VDC Zinc NEDA 1604/6F22/006P V |
Bandwidth | 20 kHz |
Peak Hold | Yes |
Resolution | 10 uV/0.1 mV |
Caractéristiques
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
- Large digit display with bright, 2 level backlight makes the 87 V significantly easier to read than older models
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Selectable filter for accurate voltage and frequency measurements on motor drives
- 0.05% DC accuracy
- 4-1/2 digit mode for precise measurements (20000 counts)
- Measure up to 1000 VAC/VDC
- Measure up to 10 A, 20 A for up to 30 s
