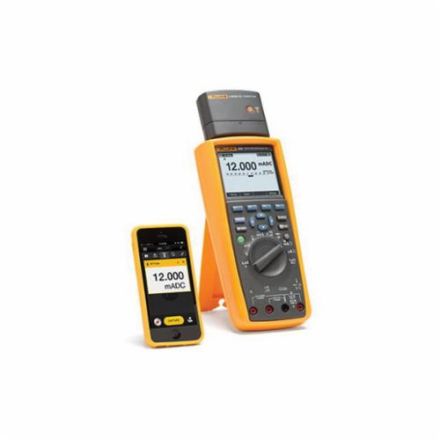

Kit Multimètre Numérique Fluke 289/FVF - 1000VAC - 10A - 50O-500MO - VGA
- GLD# 9918752
- MFG# 3036206
- UPC 095969417143
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

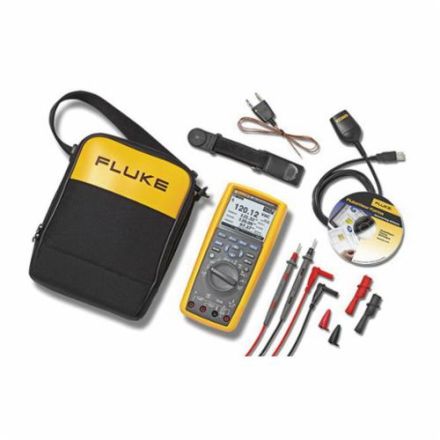

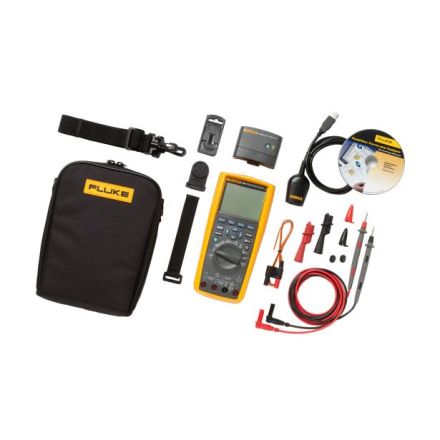

Kit fluke multimètre numérique, 1000 vca, 10 une, 999.99 khz, 50 ohm à 500 mohm, cote de sécurité : cat. Iv 600 vca/v cc/cat. Iii 1000 vca/v cc, 1 nf à 100 uf, 0.025 % v cc, 0.4 % (tours/mn réels) vca précision, matrice de points vga, (6) pile alcaline aa, neda 15 a/iec lr6 v, oui, oui, 12.2x10.63x3.94 po, -328 à 2462 deg f, plastique dur
Spécifications
| UNSPSC | 41113630 |
|---|---|
| Application | Solve Complex Problems in Electronics, Plant Automation, Power Distribution and Electro Mechanical Equipment Applications |
| Accuracy | 0.025% VDC, 0.4% (True RMS) VAC |
| Dimensions | 12.2 x 10.63 x 3.94 in |
| Display Type | VGA Dot Matrix |
| Frequency Rating | 999.99 kHz |
| Material | Hard Plastic |
| Amperage Rating | 10 A |
| Capacitance | 1 nF to 100 uF |
| Diode Test | Yes |
| Resistance | 500 Ohm to 50 MOhm |
| Safety Rating | CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC |
| Temperature Rating | -328 to 2462 deg F |
| Voltage Rating | 1000 VAC |
| Battery Type | (6) AA Alkaline, NEDA 15 A/IEC LR6 V |
| Peak Hold | Yes |
Caractéristiques
- TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred
- Zoom on trend provides unprecedented ability to view and analyze TrendCapture data, zoom in up to 14 times
- Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
- Adjustable recording and auto-hold thresholds, specify a percentage change in the readings that begins a new event
- Large 50000 count, 1/4 VGA display with white backlight, multiple sets of measurement information can be simultaneously displayed at the same time, hard plastic enclosure

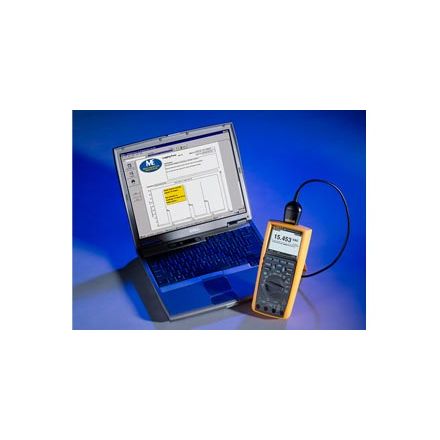

- Logging function with expanded memory for unattended monitoring of signals over time, using on board TrendCapture users can graphically review logged readings without needing a PC
- Stores up to 15000 recorded events, on board help screens for measurement function
- Saved measurements allow to name and recall measurements made in the field, real time clock for automatic time stamping of saved readings
- Cat IV 600 V, Cat III 1000 V safety rating, 50000 count, 1/4 VGA display with white backlight, -200 to 1350 deg C temperature
- True-RMS AC voltage and current for accurate measurements on complex signals or non-linear loads, AC bandwidth specified to 100 kHz, 6 AA alkaline batteries, NEDA 15A IECLR6, voltage DC, 0.025%, voltage AC, 0.4% (True-RMS)
