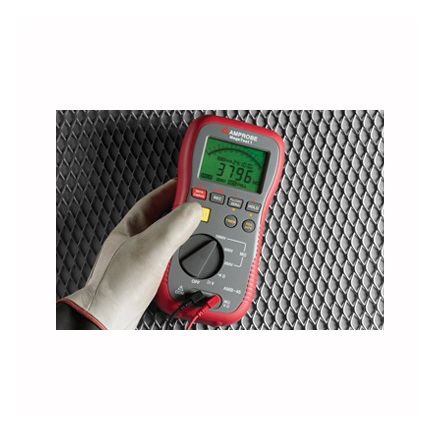

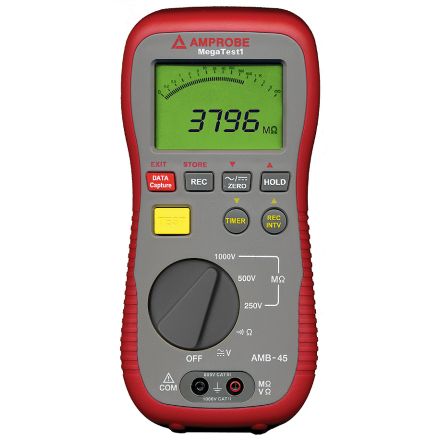

Testeur Résistance Isolement Amprobe AMB-45 - 600VAC/VDC - 4000O/400MO
- GLD# FLUKE-100864
- MFG# 2731024
- UPC 095969366120
Qté min. de commande 1
Description
Testeur de résistance disolement Amprobe, 600 VCA/VCC, résistance de 4 à 4000 mohms, résistance 4000 ohms/400 mohms, +/-1 % rdg + 5 chiffres de précision, 0.Résolution de 1 à 1 ohm, écran lcd, cote de sécurité : cat. Iii 600 v, cat. Ii-1000 v, 30 min de gamme automatique, oui mise hors tension automatique, (8) 1.5 VCC une source dalimentation par piles alcalines, 9 x 4.6x2.4 po dimensions
Spécifications
| UNSPSC | 41113628 |
|---|---|
| Accuracy | +/-1% RDG + 5 Digits |
| Dimensions | 9 x 4.6 x 2.4 in |
| Display Type | LCD |
| Resistance | 4000 Ohm/400 MOhm |
| Safety Rating | CAT III 600 V, CAT II-1000 V |
| Voltage Rating | 600 VAC/VDC |
| Power Source | (8) 1.5 VDC AA Alkaline Batteries |
| Resolution | 0.1 to 1 Ohm |
| Auto Power Off | Yes |
| Resistance Range | 4 to 4000 MOhm |
| Auto Ranging | 30 min |
Caractéristiques
- Test insulation of wires, cables, transformers and electrical motors quickly and easily with this rugged tester
- Comes as a complete kit including test leads and PC software
- Selectable test voltages 250 VDC, 500 VDC and 1000 VDC
- Programmable timer to perform the dielectric absorption ratio test
- Sensitive ohmmeter for checking resistance of motor windings
- Built-in voltmeter
- Fast and easy to use, rugged durable design
- Internal memory to store measurements for future reference
- Data download to PC
- 400 MOhm/4000 Ohm at 9 VDC resistance
