Manufacturier
Fluke

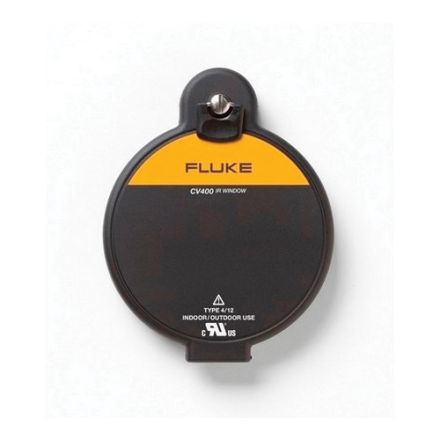

FENÊTRE IR FLUKE CV400 - FENÊTRE CLIRVU 4" ROTATION MANUELLE. INSERT CRISTAL 0,9". GRANDE SURFACE D'INSPECTION THERMIQUE
- GLD# 4206540875860183000
- MFG# 4326996
- UPC 95969667081
Description
Fenêtre infrarouge fluke clivu, gamme : cv gamme, insert cristal 4 po, 0.Épaisseur de fenêtre 9 po, 3.Taille douverture de visualisation 45 po diam., 9.Zone douverture de vision de 35 po-ca
Spécifications
| Application | Indoor and Outdoor Applications |
|---|---|
| Crystal Insert Size | 4 in |
| Series | CV Series |
| Viewing Aperture Area | 9.35 sq-in |
| Viewing Aperture Size | 3.45 in Dia |
| Window Thickness | 0.9 in |
Caractéristiques
- Installs and grounds in less than 5 min
- One technician
- One hole with standard Greenlee® punch
- Panel door does not need to be removed
- Grounds instantly to metal enclosure with patent pending AutoGround™ process
- Maintains panel arc test ratings up to 63 kA when properly installed
- Work more efficiently with Fluke® ClirVu® CV200 50 mm infrared windows
- NFPA 70E processes significantly reduced due to less work permit requirements
- Faster and more comfortable inspections because full PPE is often not required
- Reduce the risk of arc flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance
