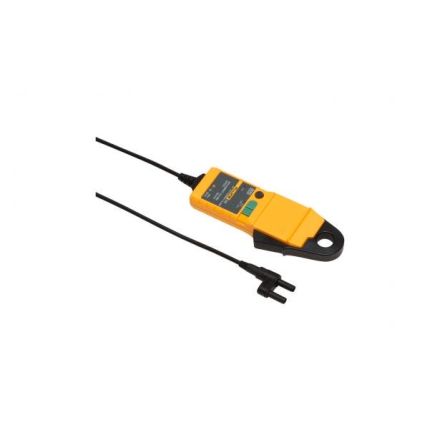

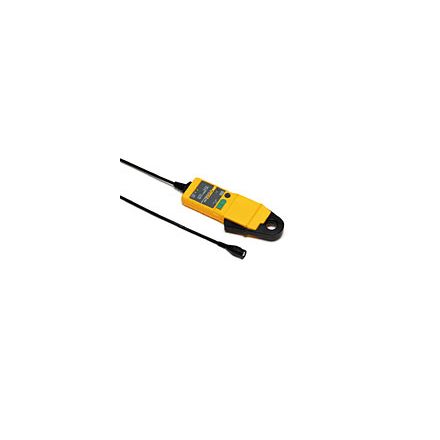

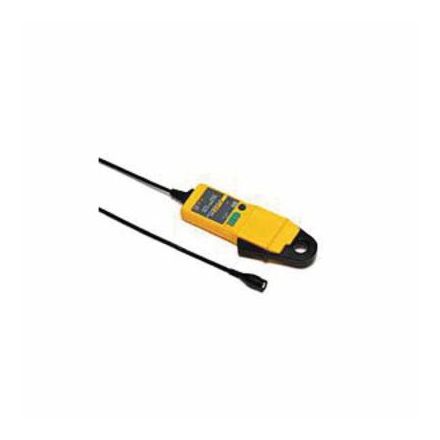

Pince Ampèremétrique Fluke I30S - 30A - 100kHz - Connexion BNC

Qté min. de commande 1

Description

Pince ampèremétrique Fluke, 30h, fréquence 100 KHZ, conducteur 99 mm, connexion bnc, plastique dur, noir/marron/jaune

Spécifications

Plus d'infos
UNSPSC	41111905
Couleur	Black/Brown/Yellow
Material	Hard Plastic
Amperage Rating	30 A
Frequency Rating	100 kHz
Application	For measure current in conjunction with oscilloscopes and other suitable recording instruments
Conductor Size	99 mm
Connection Type	BNC

Caractéristiques

The i30s current clamp is based on hall effect technology for use in measurement of both DC and AC current
The i30s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement
30 mA to 30 a DC, 30 mA to 20 A AC RMS specified current range
5 mA to 30 a DC, 30 mA to 20 A AC RMS usable current range
1.4 in crest factor
100 mV/A output sensitivity
+/-1 mA resolution
>100 kOhm load impedance
+/-1% relative to center reading conductor position sensitivity
<2 deg phase shift below 1 kHz
