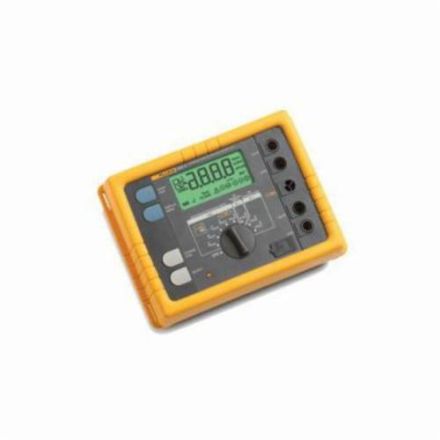

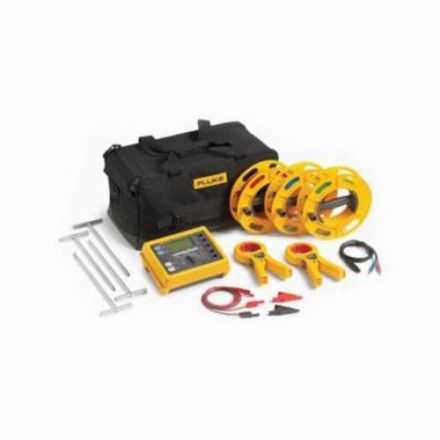

Kit Testeur Géoterrestre Fluke 1625-2-KIT - 20VAC - 250mA - LCD - Piles AA
- GLD# FLUKE-100069
- MFG# 4325181
- UPC 095969666879
Qté min. de commande 1
Description
Kit de testeur de mise à la terre Fluke geo, 20 VCA terre, 250 ma, fréquence 94/105/111/128 HZ, 1.Résistance de 5 mohms, lecture +/-2 % + précision 3 chiffres, numérique écran lcd, 0.Résolution 001 à 100 ohms, source dalimentation par pile, ip40/ip56 boîtier, 2999 nombre, cote de sécurité : cat. Ii 300 v
Spécifications
| UNSPSC | 41113600 |
|---|---|
| Accuracy | +/-2% Reading + 3 Digits |
| Amperage Rating | 250 mA |
| Counts | 2999 |
| Display Type | Digital LCD |
| Earth Voltage | 20 VAC |
| Enclosure Type | IP40/IP56 |
| Frequency Rating | 94/105/111/128 Hz |
| Power Source | AA Battery |
| Resistance Range | 1500 Ohm |
| Resolution | 0.001 to 100 Ohm |
| Safety Rating | CAT II 300 V |
Caractéristiques
- Unique earth ground tester that can performs all types of earth ground measurement

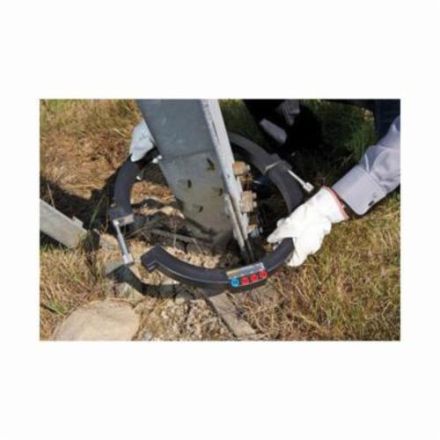

- 3 and 4-pole fall-of-potential (using stakes), 4-pole soil resistivity testing (using stakes), selective testing (using 1 clamp and stakes), stakeless testing (using 2 clamps only)
- Measures interference voltage and frequency, earthing resistance 3-pole and 4-pole with/without clip-on current transformer, resistance 2-pole with AC, 2- and 4-pole with DC
- Central rotary switch and function keys
- Internal memory storage up to 1500 records accessible via USB port
- Four digit (2999 digit) seven segment liquid crystal display with improved visibility
- Identifies existing interference and chooses a measurement frequency to minimize its effect providing more accurate earth ground value
- Calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see
- Adjustable limits for quicker testing
- IP56 rated for outdoor use, rugged carrying case, USB data storage and transfer
