ACCOUPLEMENT 1" HB X 1" NPT ACIER

GLD#
9894241
MFG#
3518

Temps de livraison estimé

24 à 48h

Connectez-vous pour afficher les disponibilités et les prix

Qté min. de commande 1

Passer à la fin de la galerie d’images

Passer au début de la Galerie d’images

Description

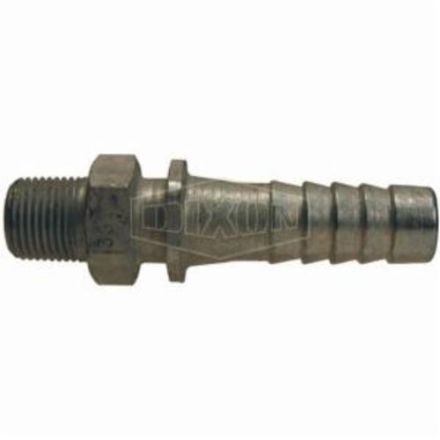

Dixon®; mamelon, gamme: 3500, 1 po nominal, mnpt x tuyau queue style extrémité, 4-19/32 de longueur, pression 600 psi, 70 deg f, acier, zingué, domestique

Spécifications

Plus d'infos
UNSPSC	40141734
Finish	Zinc Plated
Series	3500
Pressure Rating	600 psi
Nominal Size	1 in
Length	4-19/32 in
Material	Steel
End Style	MNPT x Hose Shank
Domestic/Import	Domestic
Application	For air and water service only
Temperature Rating	70 deg F

Caractéristiques

The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type
To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose
To construct a whip hose, connect one end of a short (3 to 10 ft ) air hose to the air tool using a 3500 type steel nipple
Connect the other end of the hose to the air supply using the standard quick-acting coupling
The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection
The whip hose should remain permanently connected to the tool
For air and water service only
Do not use in connection with drinking water
Wash hands after handling
