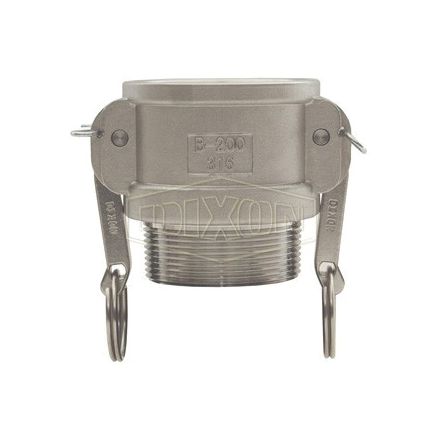

2"Part B Adapt.Ss
- GLD# 4050236398390197000
- MFG# G200-B-SS
Qté min. de commande 1
Description
Dixon coupleur à came et rainure, type b, raccord/connecteur de couplage, 2 po nominal, coupleur femelle x style dextrémité mnpt, 3-29/32 po longueur, 250 lb/po-ca de pression, acier inoxydable 316, 3-3/32 po dimensions h, import
Spécifications
| UNSPSC | 40141734 |
|---|---|
| Application | Designed for use with liquids |
| Domestic/Import | Import |
| End Style | Female Coupler x MNPT |
| Fitting/Connector Type | Coupling |
| Material | 316 Stainless Steel |
| Nominal Size | 2 in |
| Pressure Rating | 250 psi |
| Type | Type B |
| Length | 3-29/32 in |
| Dimensions | 3-3/32 in H |
Caractéristiques
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Stainless steel handle
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
