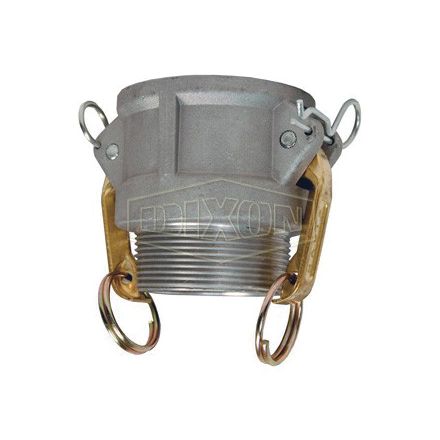

ACCOUPLEMENT RAPIDE 3" STYLE B X MALE NPT EN ALUM.
- GLD# 4091857253420393000
- MFG# G300-B-AL
Qté min. de commande 1
Description
Dixon coupleur à came et rainure, type b, raccord/connecteur de couplage, 3 po nominal, coupleur femelle x style dextrémité mnpt, 5-5/32 po longueur, 125 lb/po-ca de pression, aluminium, 3-3/4 po dimensions h, import
Spécifications
| UNSPSC | 40141734 |
|---|---|
| Application | Designed for use with liquids |
| Domestic/Import | Import |
| End Style | Female Coupler x MNPT |
| Fitting/Connector Type | Coupling |
| Material | Aluminum |
| Nominal Size | 3 in |
| Pressure Rating | 125 psi |
| Type | Type B |
| Length | 5-5/32 in |
| Dimensions | 3-3/4 in H |
Caractéristiques
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Guides & Manuels
Dixon_Valve_Coupling_G300-B-AL_Catalog.pdf
Télécharger
