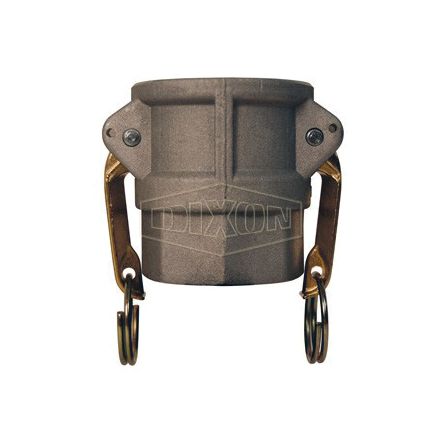

CPLR CAM _ GRV 2IN AL IMPORT 250PSI
- GLD# 4130966356950175000
- MFG# G200-D-AL
Qté min. de commande 1
Description
Dixon Coupleur à came et rainure, type D, raccord/connecteur daccouplement, 2 po nominal, coupleur femelle x style dextrémité fnpt, 3-15/16 po de longueur, pression de 250 lb/po-ca, aluminium, 3-1/8 po dimensions h, importation
Spécifications
| UNSPSC | 40141734 |
|---|---|
| Application | Designed for use with liquids |
| Domestic/Import | Import |
| End Style | Female Coupler x FNPT |
| Fitting/Connector Type | Coupling |
| Material | Aluminum |
| Nominal Size | 2 in |
| Pressure Rating | 250 psi |
| Type | Type D |
| Length | 3-15/16 in |
| Dimensions | 3-1/8 in H |
Caractéristiques
- Designed to interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Brass handle
- A380 permanent mold aluminum
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
Guides & Manuels
Dixon_Valve_Coupling_G200-D-AL_Catalog.pdf
Télécharger
