Manufacturier
Dixon Valve _ Coupling

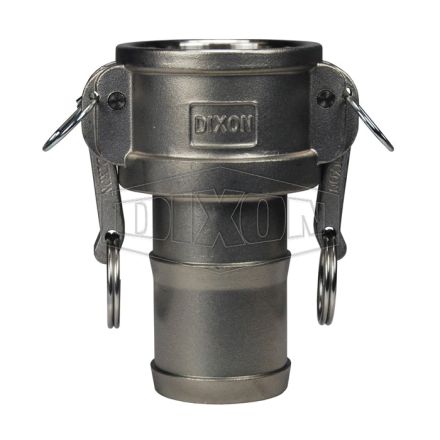

1 1/2"PART C ADAPT.SS
- GLD# 9929654
- MFG# G150-C-SS
Temps de livraison estimé
24 à 48h
5 en stock
52,58 $ / chaque
Déjà client?
Accédez à vos tarifs exclusifs en vous connectant à votre compte.
Qté min. de commande 1
Description
Dixon coupleur à came et rainure, type-c, raccord/connecteur de couplage, 1-1/2 po nominal, coupleur femelle x tuyau queue style dextrémité, 3-17/32 po de longueur, 250 lb/po-ca pression, acier inoxydable 316, dimensions 4-11/32 po h, importation
Spécifications
| UNSPSC | 40141734 |
|---|---|
| Application | Designed for use with liquids |
| Domestic/Import | Import |
| End Style | Female Coupler x Hose Shank |
| Fitting/Connector Type | Coupling |
| Material | 316 Stainless Steel |
| Nominal Size | 1-1/2 in |
| Pressure Rating | 250 psi |
| Type | Type-C |
| Length | 3-17/32 in |
| Dimensions | 4-11/32 in H |
Caractéristiques
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Stainless steel handle
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
Guides & Manuels
Dixon_Valve_Coupling_G150-C-SS_Catalog.pdf
Télécharger
