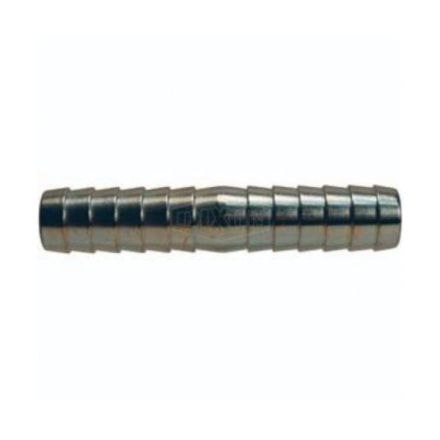

Dixon dmxl21 raccommodeur de tuyaux, 1-1/2 po, acier, domestique
- GLD# 9878772
- MFG# DMXL21
Qté min. de commande 1
Description
Raccommodeur de tuyaux dixon, type de raccord/connecteur : couplage, 1-1/2 po nominal, 7 po longueur, acier, zingué, 1-1/2 po diam., domestique
Spécifications
| UNSPSC | 40141734 |
|---|---|
| Domestic/Import | Domestic |
| Finish | Zinc Plated |
| Fitting/Connector Type | Coupling |
| Material | Steel |
| Nominal Size | 1-1/2 in |
| Length | 7 in |
| Dimensions | 1-1/2 in Dia |
Caractéristiques
- XL series, mender is extra long
- Menders are not for compressible products such as air, nitrogen or steam
- The working pressure may vary with the construction of the hose, the type of clamping system used and the application
- In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Guides & Manuels
Dixon_DM100_Catalog.pdf
Télécharger
